AEP Torque Transducers Overview – Available with Flowinstru Asia
AEP offers a precision-engineered range of static and rotating torque transducers, designed to meet the stringent EA 10-1 standards. These instruments cover torque measurements from 0.5 N·m up to 5000 N·m, with high accuracy classes ranging from 0.03 % to 0.20 %. Available with both analog (2 mV/V, ±10 V) and digital (USB) outputs, many models feature integrated angle and speed readings for enhanced functionality and control.AEP transducers
These transducers come in various coupling types—square drive, flange, cylindrical, hexagonal—and support both contact and non-contact transmission depending on the model, catering to diverse industrial and laboratory environments.

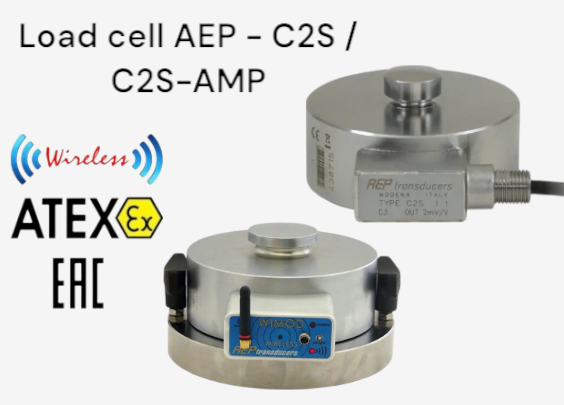

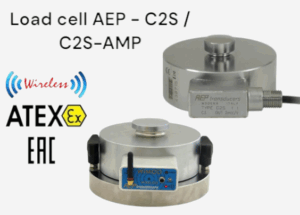

AEP LOAD CELL – CS2 / CS2-AMP
Load cell for the measurement of static and dynamic loads in COMPRESSION
Nominal Load from 100 kg to 200 tons
Class (OIML R60) C1, C2 and C3
Combined Error: 0,023%
Output: 2mV/V – On request
Low profile load cell suitable to work in hostile environments.
High mechanical resistance
Completely made of stainless steel
Completely LASER welded
Degree of protection IP68
Long term stability
On request ATEX certificate (Zones 1 and 21) GAS and DUST
CS2-AMP
Load cell for the measurement of static loads in COMPRESSION.
Nominal Load from 100 kg to 200 tons
linearity and hysteresis 0.03%

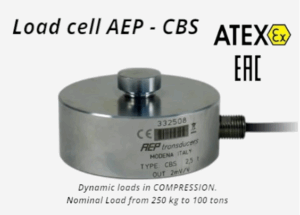

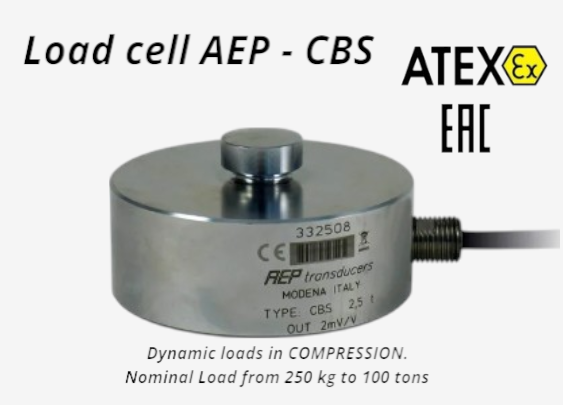

AEP LOAD CELL – CBS
Load cell for the measurement of static and dynamic loads in COMPRESSION.
Nominal Load from 250 kg to 100 tons
Combined Error: 0,03%
Output: 2mV/V
LOW COST version produced for over 30 years
Low profile load cell suitable to work in hostile environments.
High mechanical resistance
Completely made of stainless steel
Completely LASER welded
Degree of protection IP68
Long term stability
On request ATEX certificate (Zones 1 and 21) GAS and DUST

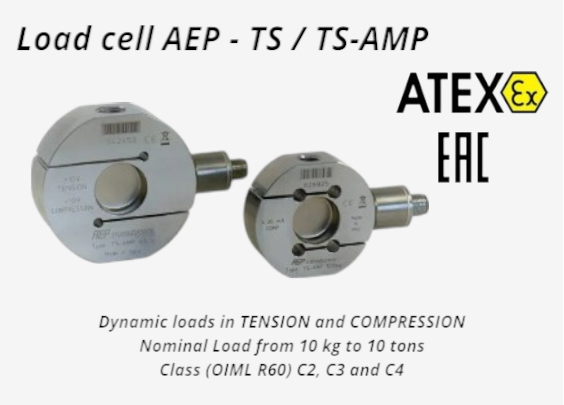

AEP LOAD CELL – TS
Load cell for the measurement of static and dynamic loads in TENSION and COMPRESSION
Nominal Load from 10 kg to 10 tons
Class (OIML R60) C2, C3 and C4
Combined Error: 0,018%
Output: 2mV/V
Load cell suitable for working in hostile environments.
High mechanical resistance.
Made entirely of stainless steel.
Entirely welded to the LASER.
Degree of protection IP67.
Long-term stability.
Homologated version on request
On request ATEX certified version (Zone 1 and 21) GAS and DUST
AEP LOAD CELL – TS-AMP
Load cell for the measurement of static and dynamic loads in TENSION and COMPRESSION
Nominal Load from 10 kg to 10 tons
linearity and hysteresis 0,030%
Standar output M12 connector

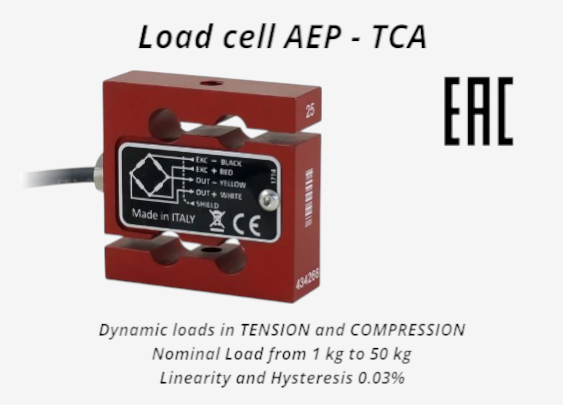

AEP LOAD CELL – TCA
Load cell for the measurement of static and dynamic loads in COMPRESSION and TENSION
Nominal Load from 1 kg to 50 kg
Linearity and Hysteresis 0.03%
Output: 2mV/V
Made entirely of Aluminum
Degree of protection IP20
Long-term stability
Overload protection for nominal loads: 1, 2, 5kg
